Parts No.

LGY1309-0200F


Series JK-35WP

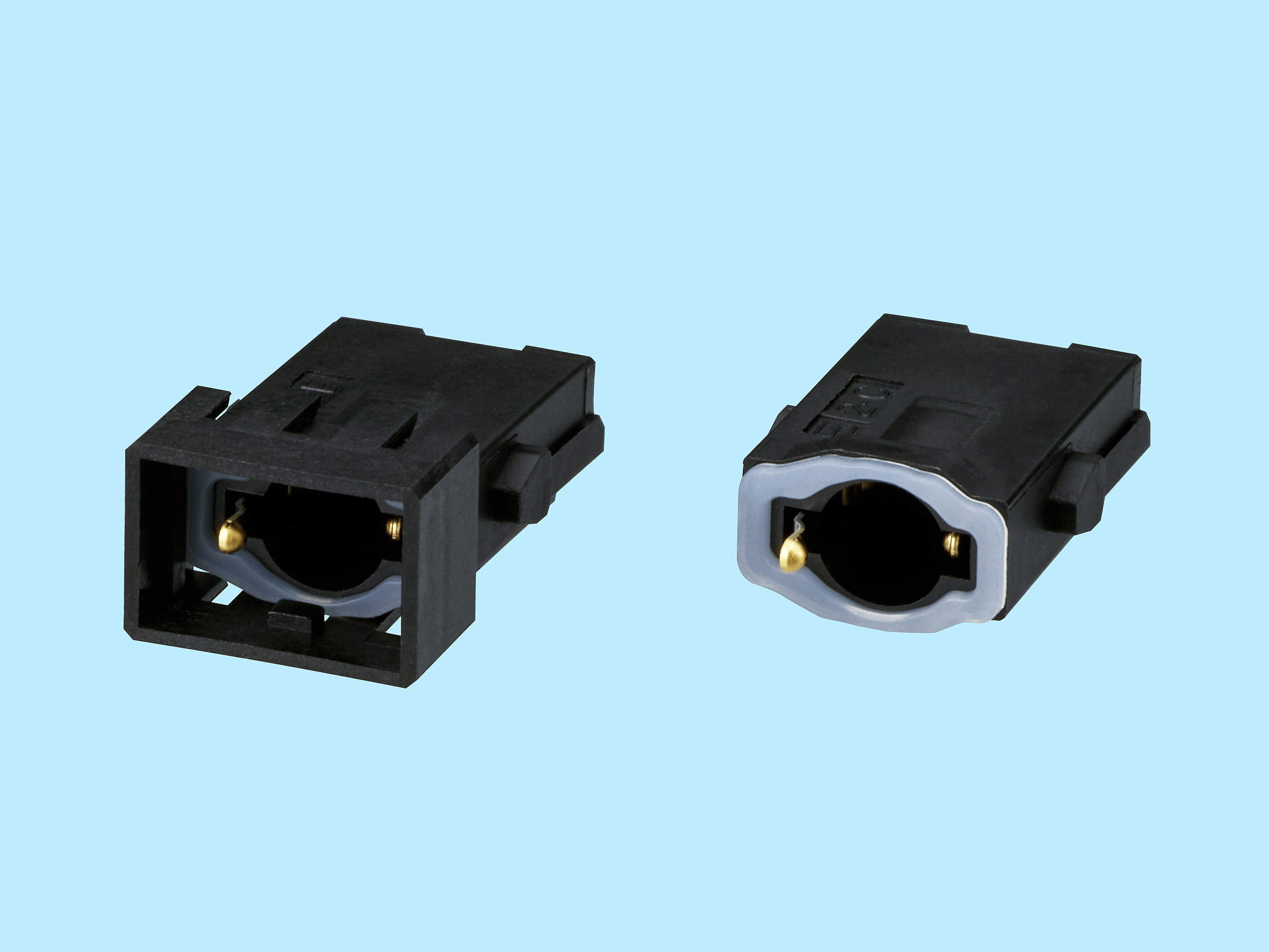

Product Name 3.5mm Dia. Jack (Waterproof Type)
Parts No. LGY1309-0200F
Outline・Feature
  • 1. Equipped with IPX7 waterproof performance due to its unique structure.
  • 2. Uses an SMT type connector for mounting and can also be mounted on FPC, etc.
  • 3. Includes a 4-pole 1-switch function. Can connect to another signal in addition to L/R sound and GND (ground).
  • 4. More compact and has a lower profile due to its unique structure.
  • 5. Uses a plug-mediated sleeve make-switch system for plug detection, improving contact reliability due to a self-cleaning effect.
  • 6. Country of Origin：China
Application Smartphones, portable audio, small devices, etc.
Standard －
External Dimension Width: 14.2mm　Depth: 9.15mm　Height: 4.8mm
Packaging Emboss Taping（900 pcs／reel）
Applicable Plug Diameter 3.5mm
Number of Pins 4 Poles
Mounting Method SMD
Terminal Shape soldering
Rating DC 12V, 1.0A
Contact Resistance 50mΩ Max.
Insulation Resistance DC 500V 1000MΩ Min.
Withstanding Voltage AC 500V (for one minute)
Operating Temperature Range －40℃ ～ ＋85℃
Housing Thermoplastic Resin
Sleeve Spring 銅合金
Tip Spring SUS
Mounting Method SMD
Switch with
Recommended Layout Reflow Soldering
Specification is subject to change without prior notice for improving performance of the product and so on.
Dimensions and specifications described herein are limited to major items.
When applying the product, please confirm details in the drawing and spec sheets which will be provided upon request.
